BR-40 LED Bulb

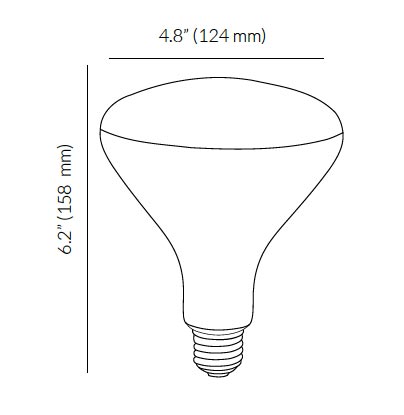

| Height: | 6.2" (158mm) |
|---|---|
| Diameter: | 4.8" (124mm) |
| Input Voltage: | 120V |
| Dimmable: | Yes |
| Power Factor: | >0.9 |
| Rated Life (hrs): | 25,000 |
| Lamp Shape: | BR40 |
| Beam Angle: | 120° |
| CRI: | >80 |
| Order Code |
Base Type |
Watts | CCT |
Equivalency (Halogen) |
Lumens |
Lumens / Watt |
Cost / Year |
|---|---|---|---|---|---|---|---|
| R40-08120-27 | E26 | 8 | 2700K | 65W | 715 | 89 | $0.96 |
| R40-08120-30 | E26 | 8 | 3000K | 65W | 715 | 89 | $0.96 |
| R40-08120-40 | E26 | 8 | 4000K | 65W | 715 | 89 | $0.96 |
| R40-16120-27 | E26 | 12 | 2700K | 85W | 1200 | 75 | $1.92 |
| R40-16120-30 | E26 | 12 | 3000K | 85W | 1200 | 75 | $1.92 |
| R40-16120-40 | E26 | 12 | 4000K | 85W | 1200 | 75 | $1.92 |
Ordering Guide
| R40-16120-27 | R40 | 16 | 120 | 27 |
|---|---|---|---|---|
| Type BR40 |
Watts 16 |
Beam Angle 120° |
CCT 2700k = 27K 3000k = 30K 4000k = 40K |
Can be used outdoors.
Dimming range will depend on both the fixture and the control.
C.L. Dimmers should be used when dimming.
Caution: Risk of electrical shock, Turn off before changing lamps. Suitable for dry and damp locations.
For use in open luminaires (fixtures) only.
Temperature Range -20°C - 40°C.
Not intended for use in emergency lighting or emergency exit signage. Dimming range will depend on both the fixture and the control.
**Use with Electronic Low Voltage (ELV) dimmers only. This LED Lamp is not compatible with all ELV dimmers. Information is subject to change without notice. Please verify all details with LED Universal. All values are typical values when measured under laboratory conditions, and LED Universal makes no warranty or guarantee, expressed or implied, that such performance will be obtained under end-use conditions.
*Estimated energy cost per year based on $0.11 per Kwh energy rate and three (3) operating hours per day.
