LEDU-Smart 240W
Max Series | LED Street Light
Optical Specs
| Item No: | UNISTAA-04-01 |
|---|---|
| Module Quantity: | 6 |
| LED Quantity: | 96pcs |
| Lamp Efficiency: | >85LM/W |
| LED Efficiency: | 150LM/W |
| Initial Delivered Lumen: | 21,560LM |
| Normal Luminous Flux | 19,550LM |
| LED Color Temperature | 5,000K/5,700K |
| Color Rendering Index: | Ra>70 |
| Beam Angle: | 150°x80° |

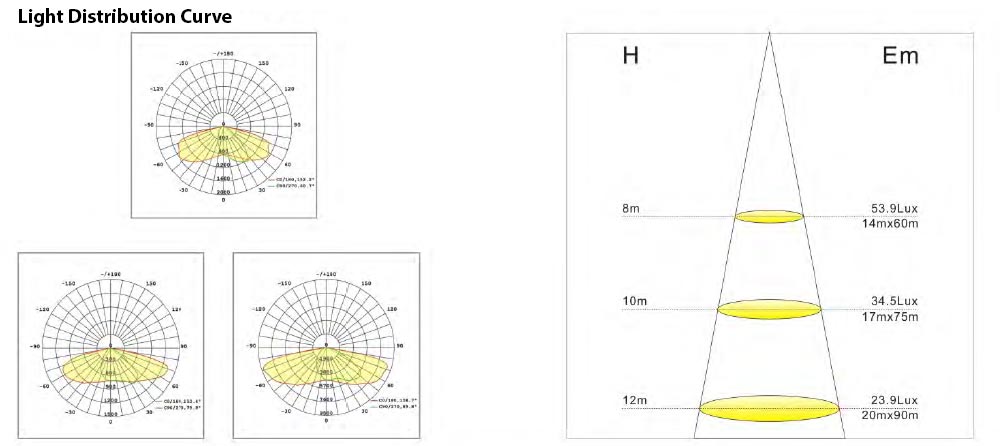

| Light Distribution: | Type II III IV |
Electrical Specs
| Input Voltage Frequency: | AC100-277V 50/60Hz |
|---|---|
| Power Factor: | >0.95 |
| Input Power: | 230W |
| Power Efficiency: | >91% |
Other Specs
| Operating Temperature: | -40°C-45°C |
|---|---|
| Operating Humidity: | 10~90RH |
| Storage Temperature: | -30°C-50°C |

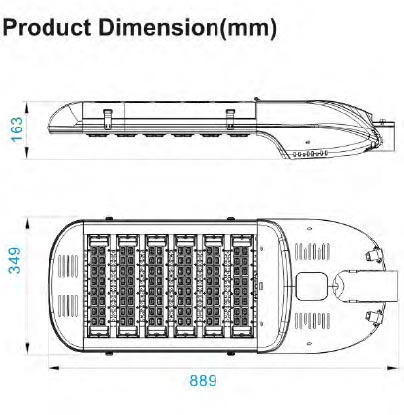

| Dimension(mm): | L889*W349*H163mm |
| Shell Material: | Aluminum+Optic PC |
| Net Weight | 12.5±0.2kg |
| Lifespan | 50,000h |
