28W UP Series
UP Series | LED Street Light
Optical Specs
| Item No: | UNISTWF-0009-UP28 |
|---|---|
| Module Quantity: | 1 |
| LED Quantity: | 28pcs |
| Lamp Efficiency: | >100LM/W |
| LED Efficiency: | 150LM/W |
| Initial Delivered Lumen: | 4,080LM |
| Normal Luminous Flux | 3,800LM |
| LED Color Temperature | 4,000K/5,000K |
| Color Rendering Index: | Ra>70 |
| Beam Angle: | 130°x80° |

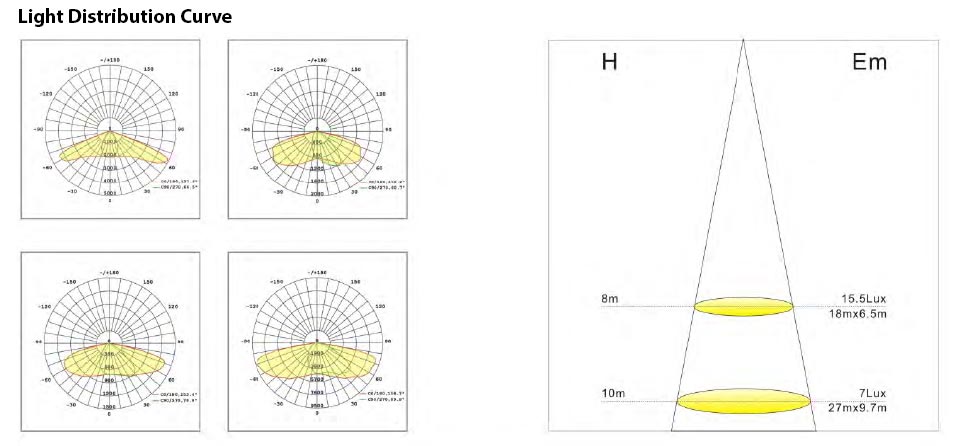

| Light Distribution: | Type I II III IV |
Electrical Specs
| Input Voltage Frequency: | AC100-277V 50/60Hz |
|---|---|
| Power Factor: | >0.95 |
| Input Power: | 36W |
| Power Efficiency: | >90% |
Other Specs
| Operating Temperature: | -40°C-45°C |
|---|---|
| Operating Humidity: | 10~90RH |
| Storage Temperature: | -30°C-50°C |

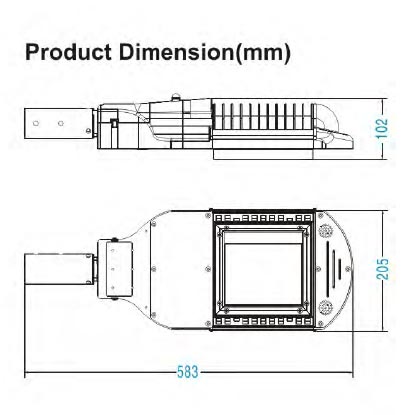

| Dimension(mm): | L583*W205*H102mm |
| Shell Material: | Aluminum+PC |
| Net Weight | 3.95±0.2kg |
| Lifespan | 50,000h |
